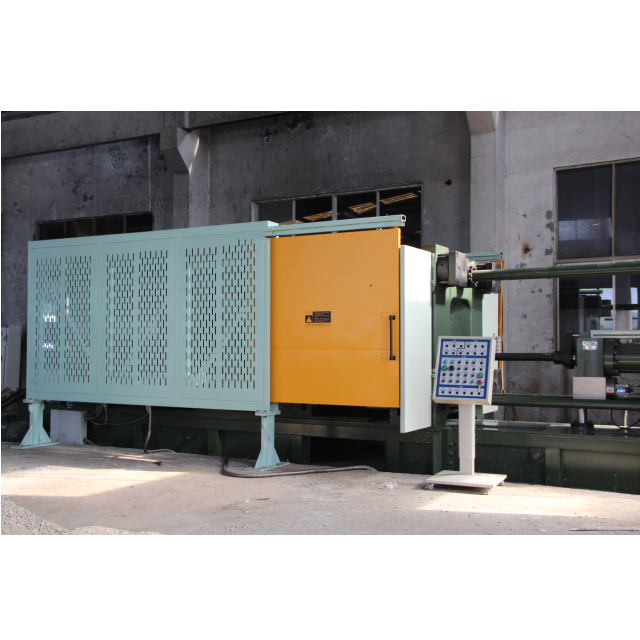

1300T Cold Chamber Die Casting Machine

LZ13000KN Cold Chamber Die Casting Machine, High Pressure Die casting machine, Horizontal type with PLC control. Working with auto ladling machine, Sprayer, Pick-up machine to reach full automatic die cast. Email: cnkylt@aliyun.com
Tonnage:
Type:
Size:
Usage:
Original:
Shipping Port:
Lead time:
Availability:
Quantity:
  • 1300 TON
  • LZ
  • 8454301000

DC1300T Horizontal Cold Chamber Die Casting Machine Specification (LZ1300T)

No. ITEM UNIT LZ1300
1 Clamping Force KN 13000
2 Inner space between tie bars(H*V) mm 1100×1100
3 Die Stroke mm 850
4 Die Thickness mm 550~1200
5 Ejection Stroke mm 200
6 Ejection Force KN 570
7 Injeciton Force KN 440~1100
8 Injection position(center is "0",down is "-") mm 0,-320
9 Dia. of shot sleeve mm 100,110,120, 130,140
10 Dia.of Injection chamber flange mm 130f7
11 Over height of flange mm 25-0.05
12 Dosage of fluid metal pershot kg 26(Al).
13 Projected area cm 928.6~4545
14 Injection pressure Mpa 28.6~140
15 Dry cycle s 19
16 Oil tank capacity L 2200
17 Motor power KW 37*2
18 Machine sizes(L*W*H) M 12×2.8×4.5

(Remark: 1.The die casting machine supplier keeps the right to revise above parameters, If there is any alterations, advance notice won't be given then. )

1300T heavy duty Cold Chamber Die Casting Machine

LZ 1300 Ton Die Casting Machine Molding Plate Specification:

1300 Ton large scale Die Casting Machine Molding Plates Specification

LZ 1300 Ton Die Casting Machine Cement Ground Specification:

1300 Ton Heavy Duty Die Casting Machine Cement Ground Specification


Heavy Duty Horizontal Cold Chamber Die Casting Machine Working Process:

Heavy Duty Horizontal Cold Chamber High Pressure Die Casting Machine which need ladle heavy weight alloy from melting pot to machine cold chamber. So, whole die casting process must use automatic machines or robots to reach full automatic running.

Full Automation horizontal cold chamber die-casting machines:

Automation equipment makes the die casting process full automatically.

The whole automatic die casting unit involve:Melting furance, Auto lading robot, Die casting machine, Auto sprayer,  Die casting parts pick-up machine (Extractor).

full automatic die casting unit

What is the Automatic Cold chamber die casting machine process?

Full automatic die casting working process: Die casting machine PLC control the whole process. Automatic ladler pour molten aluminum metal alloy from melting pot to die casting machine cold chamber. Then, be inject to mold cavities to got die-cast parts. Auto extractor pick-up casting part from die tool, put them on conveyor. The auto sprayer cooling and lubricating the mold cavity. And, to start then next die casting process.

full automatic die casting process of cold chamber die casting machine


    Key Elements Brands of LZ high pressure cold chamber die casting aluminum molding machine:

    NO. ITME BRAND REMARK
    1 Hydraulic oil pump HYTEK CHINA
    2 Magnetic valve、Electro-hydraulic valve HYTEK CHINA
    3 Cooler LONGTENG Joint-venture
    4 Lubrication equipment LIUBIAN CN-JP joint
    5 PLC OMRON JAPAN
    6 Contactor SCHNEIDER FRENCH
    7 Touch screen TouchWin CANADA
    8 Sealing system(glyd ring,step seal) FIETZ GERMANY
    9 High-pressure hose AEROQUIP USA

    die casting machine key parts brand

    (Remark: Aluminum Molding Machine Spare parts brands can be changed as per customer demand. The producer of die casting machine-LZ (China) keeps the right to revise above parameters. If there is any alterations, advance notice won't be given then. Die Casting Machine spare parts brands can be changed as per customer demand.)


    Die Casting Machine Before and After Sales Services:

    • Before Sales Services

    Provide pre-sales consultation such as investment budget and plant planning, so as to make the customer's plant design reasonable, standardized and save costs.

    • Exworks test

    1. Continuous grounding resistance test

    2. Injection speed test

    3. Clamping force test

    4. Electric control system test

    5. Machine appearance inspection

    6. Full load test for more than 72 hours

    die casting machine test

    • After Sales Services

    By guiding customers to install the water and electricity of die casting machines, adjusting new machines. Training customers' technicians and operators. The machine placement is standardized and reasonable. Enable relevant personnel to be familiar with the machine operation and maintance.

    1. Provide FREE standard spare parts together with machine.

    2. Install die casting machine.

    3. Trainning Die casting operator.

    4. Any questions be replied by email, video, photos within 24hr.

    5. Engineer guide your operater to work and adjust machine by video on line.

    6. Quality guarantee period: 12 months after machine put into operation.

    7. If the equipment fails during the guarantee peirod, the manufacturer shall repair and replace accessories free of charge.



      More information about our 1300T Heavy Duty Die Casting Machine Service, Please email us: cnkylt@aliyun.com.
