300T Pressure Die Casting Machine

LZ300T Pressure Die Casting Machine has high productivity, adjustable injection positions suitable for more molds; Die casting mold life long, aluminum alloy dies life about 30,000 to 50,000 injection times; Easy to achieve mechanization and automation. Over 35 years experience of the die casting machine design and manufacturing. Email: cnkylt@aliyun.com
Tonnage:
Type:
Size:
Usage:
Original:
Shipping Port:
Lead time:
Availability:
  • 300 TON

  • LZ

  • 8454301000

DC300T Pressure Die Casting Machine Specification (LZ300T)

No. ITEM UNIT LZ300
1 Clamping Force KN 3000
2 Inner space between tie bars(H*V) mm 580×580
3 Die Stroke mm 450
4 Die Thickness mm 250~650
5 Ejection Stroke mm 110
6 Ejection Force KN 150
7 Injeciton Force KN 133~300
8 Injection position(center is "0",down is "-") mm 0,-160
9 Dia. of shot sleeve mm 50,60,70
10 Dia.of Injection chamber flange mm 110f7
11 Over height of flange mm 12-0.05
12 Dosage of fluid metal pershot kg 3.2(Al.) 2.3(Mg.)
13 Projected area cm 196~800
14 Injection pressure Mpa 35~143
15 Dry cycle s 10
16 Oil tank capacity L 750
17 Motor power KW 18.5
18 Machine sizes(L*W*H) M 6.4×1.6×2.8

(Remark: 1.The die casting machine factory keeps the right to revise above parameters, If there is any alterations, advance notice won't be given then. 2. Servo die casting machine can be choosed to save energy and cost. )

300T Pressure Die Casting Machine

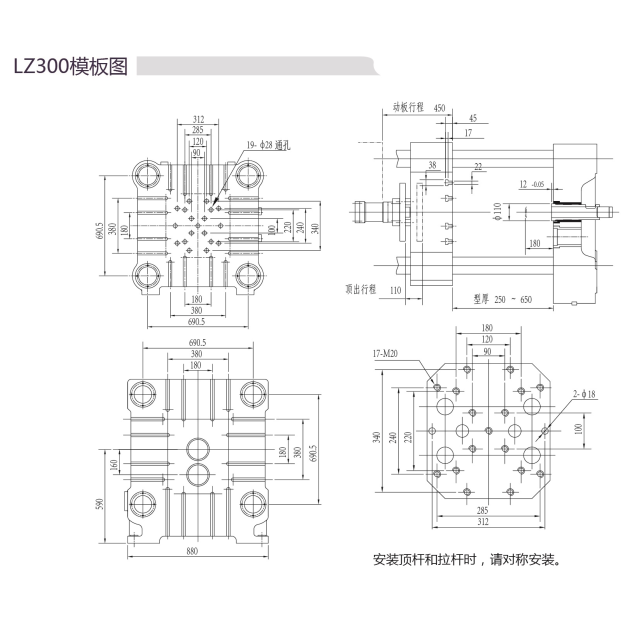

LZ 300T Pressure Die Casting Machine Molding Plate Specification:

300T Pressure Die Casting Machine Molding Plate Specification

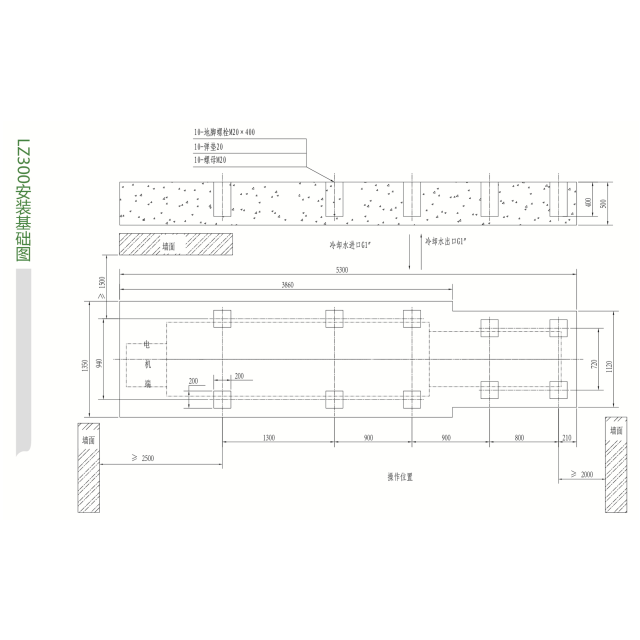

LZ 300T Pressure Die Casting Machine Cement Ground Specification:

300T Pressure Die Casting Machine Cement Ground Specification

Cold chamber die casting machine working process?

  1. Manual die casting process: die casting opeartor pour molten aluminum alloy from furance to cold chamber, then casting machine inject metal to die tool to get the die casting parts.

    manual die casting machine operation process

  2. Automatic die casting process: Die casting machine PLC control the whole process. Automatic ladler pour molten aluminum metal alloy from melting pot to die casting machine cold chamber. Then, be inject to mold cavities to got die-cast parts. Auto extractor pick-up casting part from die tool, put them on conveyor. The auto sprayer cooling and lubricating the mold cavity. And, to start then next die casting process.

    full automatic die casting process of cold chamber die casting machine

High Pressure Die-Cast Machine Structure:

  1. Machine body with hydraulic oil tank

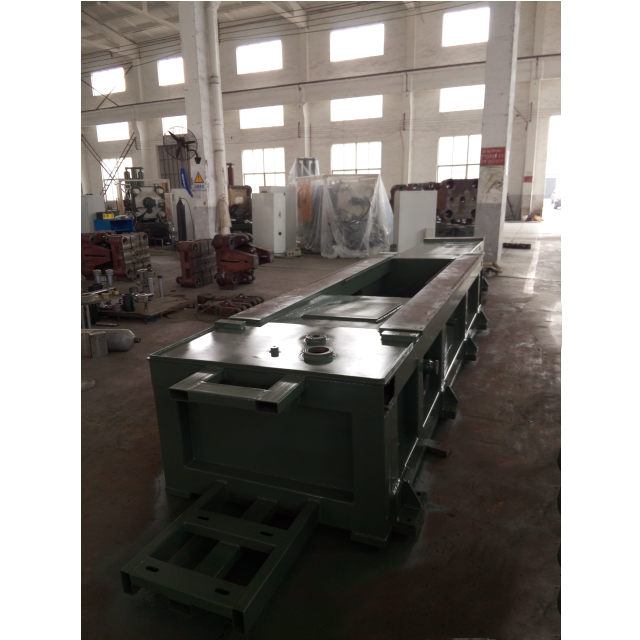

    Green structure is die casting machine body, also is hydraulic oil tank.

    die casting machine body structure

  2. Accumulation system

    high pressure die casting machine accumulater

  3. Lubrication system

    high pressure die casting machine lubrication system

  4. Mould height adjusting mechanism

    Hydraulic driven gear-type used to adjust die casting die.

    aluminum die casting machine mold adjusting system by gear

  5. Four stages control of injection speed and pressure, independent high-speeding intensification injection accumulators. Quality accumulator in die casting machine insure the pressure output stable, strong, fast. Two intensification activation ways: position way and pressure way.

    Pressure die cast machine injection system

  6. Mould platens and Tie bars

    High rigidity molding platen, high tensile alloy steel hard chrome plated tie bar.

    cold chamber die caster moulding platen and tie bar

  7. PLC System

    PLC control system (with touch screen) with fast, stable, safe and reliable operation, high precision, and functions such as production management, trouble diagnosis, and 50 sets mould parameters storage.

    PLC cold chamber die casting machine control system

  8. High speed hydraulic ejection and core-pulling devices.

    horizontal cold chamber die casting machine ejection system

  9. Electrical proportional control of system pressure and flow, with multi-stage pressure and speed control, and low-pressure die close protection function.

    PLC horizontal cold chamber die casting machine pressure system



More information about 300T Pressure Die Casting Machine cost and Service, Please email us: cnkylt@aliyun.com
