3500KN Cold Chamber Die Cast Machine

LZ 350 Ton Cold Chamber Die Cast Machine has high productivity, adjustable injection positions suitable for more molds. Die casting mold life long, aluminum alloy dies life about 30,000 to 50,000 injection times. Manual and Automatic operation is allowed. Email: cnkylt@aliyun.com
Tonnage:
Type:
Size:
Usage:
Original:
Shipping Port:
Lead time:
Availability:
Quantity:
  • 3500KN
  • LZ
  • 8454301000

DC 3500KN Cold Chamber Die Cast Machine Specification (LZ350T)

No. ITEM UNIT LZ350
1 Clamping Force KN 3500
2 Inner space between tie bars(H*V) mm 600×600
3 Die Stroke mm 560
4 Die Thickness mm 250~700
5 Ejection Stroke mm 145
6 Ejection Force KN 170
7 Injeciton Force KN 150~360
8 Injection position(center is "0",down is "-") mm 0,-160
9 Dia. of shot sleeve mm 60,70,80
10 Dia.of Injection chamber flange mm 110f7
11 Over height of flange mm 12-0.05
12 Dosage of fluid metal pershot kg 4.2(Al.) 3.0(Mg.)
13 Projected area cm 275~1167
14 Injection pressure Mpa 30~127
15 Dry cycle s 10
16 Oil tank capacity L 800
17 Motor power KW 22
18 Machine sizes(L*W*H) M 6.8×1.7×2.8

(Remark: 1.The die casting machine supplier keeps the right to revise above parameters, If there is any alterations, advance notice won't be given then. 2. Servo die casting machine can be choosed to save energy and cost. )

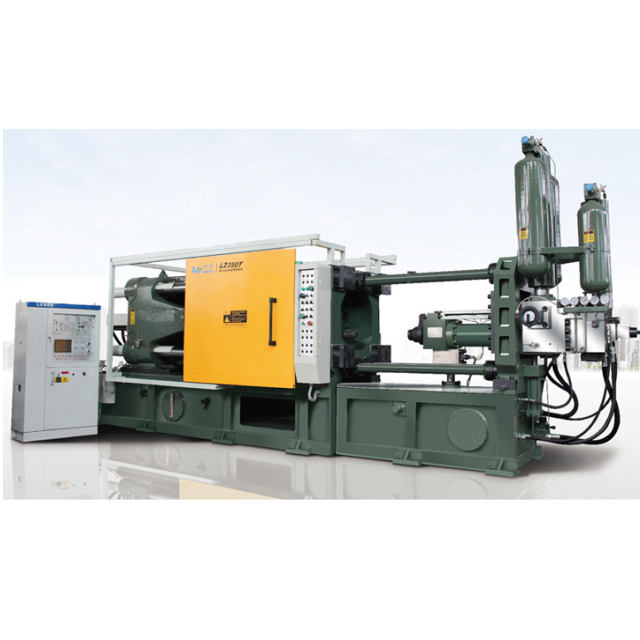

3500Kn Cold Chamber Die Cast Machine Image

350T die casting machine image

350T DIE CASTING MACHINE DRAWING:

3500KN Cold Chamber Die Cast Machine Molding Plate Specification:

3500KN Cold Chamber Die Cast Machine Molding Plate Specification

3500KN Cold Chamber Die Cast Machine Cement Ground Specification:

3500KN Cold Chamber Die Cast Machine Cement Ground Specification


HOW DOES DIE CASTING  WORK?

Manual Operation and Full Auto die casting work principle is ladling molten metal from die casting machine electric furnace to cast machine cold chamber. Next, plunging system in cold chamber die casting machine push liquid alloy into pressure die to got die cast parts.

Manual die casting process is operated by worker, Automatic die casting process is operated by auxiliary machines to instead of worker.

Cold chamber die casting machine PLC control used to adjust pressure, injection force etc key mechanism parts work. In automatic process, PLC connect with other auxiliary machines, control all machines work under program.

Full automatic aluminum cold chamber die casting unit working process video:

Youtube: https://youtu.be/npYbgva3NK8


What is the Cold chamber die casting machine process?

  1. In manual working process: die casting opeartor pour molten aluminum alloy from furance to cold chamber, then casting machine inject metal to die tool to get the die casting parts.

    manual die casting machine operation process

  2. In full automatic working process: Die casting machine PLC control the whole process. Automatic ladler pour molten aluminum metal alloy from melting pot to die casting machine cold chamber. Then, be inject to mold cavities to got die-cast parts. Auto extractor pick-up casting part from die tool, put them on conveyor. The auto sprayer cooling and lubricating the mold cavity. And, to start then next die casting process.

    full automatic die casting process of cold chamber die casting machine


Application of Cold Chamber Die Casting Mahine:

  • Automotive Die Casting Parts

    Automotive die casting parts

  • Kitchen and Toilet Appliances Die Casting Parts

    Kitchen and Toilet Appliances die casting parts

  • Lamps Die Casting Parts

    die casting parts for lamps

  • Electric Cars and Metal Hardware Die Casting Parts

    electric car and metal hardware die casting parts

  • Tel-Communication Die Casting Parts

    Tel-communication die casting parts

  • Garden Machinery and Power Tools Die Casting Parts

    garden machinery and power tools die casting parts

  • Other Die Casting Parts

    die casting parts


    Servo driven die casting machine

Servo driven system is an advisable choice for die casting machine factory. It features:

  1. Energy saving

  2. Rapid response and improved efficiency

  3. Stable pressure and precision

  4. High repetition accuracy

  5. High speed and large lifting flow

  6. Connection mode to improve heat dissipation performance

    servo die casting machine


    More information about 3500KN Cold Chamber Die Cast Machine Service, Please email us: cnkylt@aliyun.com
