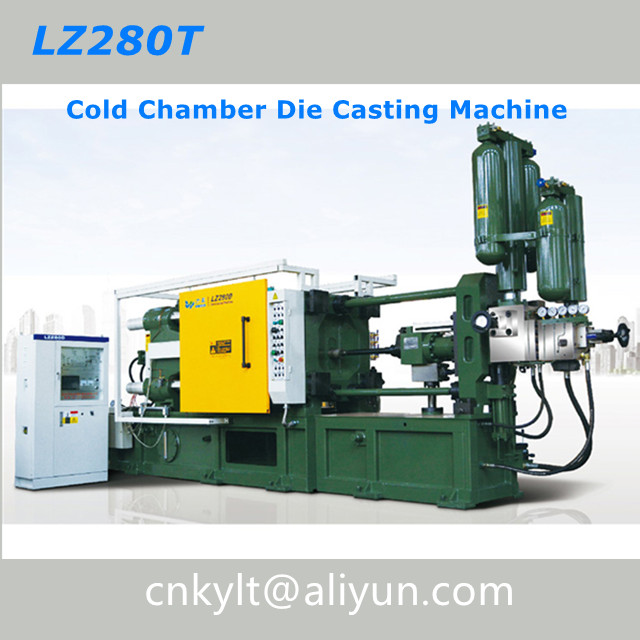

Cold Chamber Die Casting Machine

Over 35 years experience of the die casting machine design and manufacturing.
Cold Chabmer Die Machines tonnages:150T, 160T, 200T, 280T, 300T, 350T, 400T, 550T, 700T, 800T, 1100T.
LZ Cold Chamber Die Casting Machines are widely used in manufacturing Aluminum, Magnesium, Zinc, Copper alloy die casting parts.
Quality guarantee period is 12 months after machine put in to operation.
Service for over 3 hunders small and medium-sized enterprises in china, and export to Egypt, Yemen, India, Vitenam, Algeria etc countires.
Tonnage:
Material:
Availability:
Quantity:
  • COLD CHAMBER
  • LZ
  • 8454301000

As one Cold Chamber Die Casting Machines manufacturer, LZ brand has over 35 years experience of the die casting machine design and manufacturing.

With good quality and stable function, LZ die casting machinery service for over 3 hunders small and medium-sized die casting companies and suppliers in china, and export to Egypt, Yemen, India, Vitenam, Algeria etc countires.

Die Casting Machine manufacturer

We experience on provide "ONE-STOP" service and solution for your die casting projects. The materials are widely used in manufacturing Aluminum, Magnesium, Zinc, Copper alloy die casting parts.

How to classify the type of Horizontal Cold Chamber Die Casting Machine?

  1. Cold Chamber Pressure Die Casting Machine tonnages are different from 160T, 200T, 280T, 350T, 550T to 1100T.

  2. According materials types of die casting, the cold chamber die pressure casting machines can be calssified:

    Aluminum Die Casting Machine, Magniesium Die Casting Machine, Zinc/ZAMAK Die Casting Machine, Copper/Brass Die Casting Machine.

  3. As per automatic grade, the die casting machinery can be classified: Manual Die Casting Machine, Automatic Die Casting Machine.

  4. As per injection method, the metal castingmachine can be named: Plunger Cold Chamber Die Casting Machine, High Pressure Casting Chamber Machine

    Cold Chamber Pressure Die Casting Machine

LZ Die Cast Machine quality waranty and services:

  • 12 months after machine put into operation. If the die cast equipment fails during the guarantee peirod, the manufacturer shall repair and replace accessories free of charge.

  • LZ "ONE-STOP" die casting solution:

  1. die casting factory design

  2. casting machines assembly and adjustment

  3. die cast molds & tools making

  4. finished casting parts

LZ High Pressure Die Casting Machines Useage and Characteristic:

LZ High Pressure Casting Machines are widely used in industrial lines of Aviation, Automobile, Motorcycle, Telecom instrument, Electrical home appliances hardware. And they are used to produce large Aluminum, Magniesium, Zinc, Copper and other non-ferrous metal casing parts.

die casting parts

LZ Cold Chamber Die Cast Machine advantages:

  1. High performance:

    The max. dry inject speed over 7m/s, and pressurization & creation duration more fast.

    Injection system

  2. High reliability:

    Metal Die Casting Machine adopts PLC programmable controller. And control the transmission by the hydraulic pressure drove. (That is reason,why the casting machine also named: Hydraulic die casting machine, PDC - Pressure Die Casting Machine .) Diecast machinery is designed & produced as per excellent quality structure. They are reliability and durability.

    PLC electric system

  3. High-speed die-casting production:

    Die locking force and injection force adopts the proportion of conditioning systems. Which keep the machines always in the rational work state. So these machines realize high-speed production.

    Pressure control system

  4. Stable clamping system:

    The clamping parts are made of high-strength nodular cast iron and inclined row structure. Finite element analysis used to check the clamping system. The pressure distribution is reasonable. That ensure the long-term stability of the machine accuracy, not easy to deform. Significantly reduce the impact of opening and closing mold, and prolong the machine life.

    die-cast machine nodular cast iron

  5. Sensitive hydraulic system:

    The hydraulic system adopts proportional control system. The parameters setting is convenient. The die casting mechanism operation is fast, stable, safe and reliable.

    die casting machine hydraulic system

  6. Fast injection system:

    The injection system adopts independent accumulator. The fast injection & pressurization adopts newly developed fast reaction throttle valve. Which greatly improves the acceleration performance of fast injection.  Shorten the switching time of high-speed and pressurization. It is an important symbol of the superior injection performance of modern high-quality die casting machine.

    die casting machine fast injection system

  7. Famous brands PLC control system:

    The electrical system: Mitsubishi PLC, OMRON PLC and Schneider electric components.

    Touch screen used to adjust and set the parameters.

      die casting machine PLC control system

  1. Quality lubrication system:

The lubrication system of die casting machine parts adopt self inspection connector. If the oil circuit is blocked at any point that can be quickly detected. The undervoltage protection system can prevent the elbow parts from serious wear and even fracture due to lack of oil, and prolong the service life of the casting equipment.

      die cast machine lubircate system

LZ series cold chamber die casting machine technical specifications

1. LZ150~268T Main specifications and parameters.

No. ITEM UNIT LZ150/160
LZ180 LZ200 LZ268
1 Clamping Force KN 1500/1600
1800
2000
2680
2 Inner space between tie bars
(H*V)
mm 440×440
480×480
490×490
540×540
3 Die Stroke mm 340
380
380
450
4 Die Thickness mm 200~550
200~550
200~550
250~650
5 Ejection Stroke mm 80
80
80
110
6 Ejection Force KN 100
110
110
150
7 Injeciton Force KN 110~190
105~230
105~236
133~280
8 Injection position
(center is "0",down is "-")
mm 0,-70,-140
0,-140
0,-140
0,-160
9 Dia. of shot sleeve mm 40,50,60
50,60,70
50,60,70 50,60,70
10 Dia.of Injection chamber flange mm 110
110f7
110f7
110f7
11 Over height of flange mm 10-0.05
10-0.05
10-0.05
12-0.05
12 Dosage of fluid metal pershot kg 1.8
2.5
2.5
3.2(Al). 2.3(Mg)
13 Projected area cm 105~550
171~666
172~660
196~800
14 Injection pressure Mpa 36~149
27.3~117
28~118
35~143
15 Dry cycle s 7
7
7
10
16 Oil tank capacity L 450
550
650
750
17 Motor power KW 11 11
15
18.5
18 Machine sizes
(L*W*H)
M 5.1×1.2×2.2
5.7×1.3×2.4
5.8×1.25×2.4
6.4×1.6×2.8

(Remark:The company keeps the right to revise above parameters, If there is any alterations, advance notice won't be given then.)

2. LZ300~550T Main specifications and parameters.

No. ITEM UNIT LZ300
LZ350 LZ400 LZ550
1 Clamping Force KN 3000
3500
4000 5500
2 Inner space between tie bars
(H*V)
mm 580×580
600×600
630×630 750×750
3 Die Stroke mm 450
560
580
580
4 Die Thickness mm 250~650
250~700
300~800
350~850
5 Ejection Stroke mm 110
145
145
150
6 Ejection Force KN 150
170
190
266
7 Injeciton Force KN 133~300 150~360 160~400
200~520
8 Injection position
(center is "0",down is "-")
mm 0,-160
0,-160
0,-175
0,-220
9 Dia. of shot sleeve mm 50,60,70
60,70,80
60,70,80 70,80,90
10 Dia.of Injection chamber flange mm 110f7
110f7
130
130f7
11 Over height of flange mm 12-0.05
12-0.05
15-0.05
15-0.05
12 Dosage of fluid metal pershot kg 3.2(Al.) 2.3(Mg.)
4.2(Al.) 3.0(Mg.) 5(Al.) 6(Al). 4.3(Mg)
13 Projected area cm 196~800 275~1167 283~1258
407~1749
14 Injection pressure Mpa 35~143 30~127
35~142
31.5~135
15 Dry cycle s 10 10
10
13
16 Oil tank capacity L 750
800
800
1100
17 Motor power KW 18.5 22
22
30
18 Machine sizes
(L*W*H)
M 6.4×1.6×2.8
6.8×1.7×2.8
7.5×1.9×3.0
8.0×2.0×3.8

(Remark:The company keeps the right to revise above parameters, If there is any alterations, advance notice won't be given then.)

3.LZ700~1300T Main specifications and parameters.

No. ITEM UNIT LZ700
LZ850 LZ1100 LZ1300
1 Clamping Force KN 7000 8500 11000 13000
2 Inner space between tie bars
(H*V)
mm 830×830 920×920
1030×1030 1100×1100
3 Die Stroke mm 820 900
950 850
4 Die Thickness mm 350~900 400~1000
450~1150 550~1200
5 Ejection Stroke mm 200
240
190
200
6 Ejection Force KN 316
400
500
570
7 Injeciton Force KN 235~680 280~750
900
440~1100
8 Injection position
(center is "0",down is "-")
mm 0,-250
0,-250
0,-150,-300
0,-320
9 Dia. of shot sleeve mm 80,60,100
80,60,100, 110,120 90,100,110,120,130 100,110,120, 130,140
10 Dia.of Injection chamber flange mm 165f7
180f7
240f7
130f7
11 Over height of flange mm 15-0.05
20-0.05
20-0.05
25-0.05
12 Dosage of fluid metal pershot kg 12.4(Al.)
16(Al.)
21.1(Al.)
26(Al).
13 Projected area cm 518~972
570~3400
711~3166
928.6~4545
14 Injection pressure Mpa 30~135.4
68~149
30~133.6
28.6~140
15 Dry cycle s 13
14
14
19
16 Oil tank capacity L 1200
1600
1600
2200
17 Motor power KW 37 45
30*2
37*2
18 Machine sizes
(L*W*H)
M 8.6×2×3.3
10.5×2.4×3.4
9.1×2.2×3.3
12×2.8×4.5

(Remark:The company keeps the right to revise above parameters, If there is any alterations, advance notice won't be given then.)

4.Cold Chamber Die Casting Machine Catalog & Brochure download:

  1.  PDF TYPE:

    LZ150~LZ2000 LZ150LZ2000 cold chabmer die casting machine specifications and parameters.pdf

  2.  JPG TYPE:

    LZ150~LZ550 LZ150LZ550 cold chabmer die casting machine specifications and parameters.jpg

    LZ700~LZ2000 LZ700LZ2000 cold chabmer die casting machine specifications and parameters.jpg

  3. More die casting machine catalog, images, photos or die casting videos, pls. email us: cnkylt@aliyun.com

  4. The information of die casting machine for sale and die casting machine price, pls. email us: cnkylt@aliyun.com

5.Key Elements Brands of die casting machine:

NO. ITME BRAND REMARK
1 Hydraulic oil pump HYTEK CHINA
2 Magnetic valve、Electro-hydraulic valve HYTEK CHINA
3 Cooler LONGTENG Joint-venture
4 Lubrication equipment LIUBIAN CN-JP joint
5 PLC OMRON JAPAN
6 Contactor SCHNEIDER FRENCH
7 Touch screen TouchWin CANADA
8 Sealing system(glyd ring,step seal) FIETZ GERMANY
9 High-pressure hose AEROQUIP USA

(Remark: Spare parts brands can be changed as per customer demand. The company keeps the right to revise above parameters, If there is any alterations, advance notice won't be given then. Spare parts brands can be changed as per customer demand.)

famous brand of die casting machine spare parts

Servo Drive Cold Chamber Die Casting Machine

Servo Motor used to drive the die casting machine and conserve energy, which help die casting factory to save money. It is the key character of servo pressue die casting machine.

The Servo dirven cold chamber die casting machine extra working process consists: Pressure instruction unit, Pressure feed back unit, Discharge instruction unit, CRN open, Speed feedback unit,

servo die casting machine

Cold Chamber Die Casting Machine Services and Warranty:

     1.Pre-sale Service

By providing customers with pre-sales services of investment budget, plant planning and other forms, customers' planningis reasonable, standardized and cost saving.

  • Investment budget die casting machine selection and auxiliary equipment matching and budget

  • Plant planning: provide installation size of equipment foundation, equipment layout, workshop ventilation, exhaust, watertransportation, wiring, lifting equipment design services.

  • Provide information of various casting auxiliary equipment.

    cold chamber die casting machine pre-sale service

    2.After-sale Service

  • Provide FREE standard spare parts together with machine.

  • Arrange engineers to your factory to install and adjust machines. Traning the worker to operate the machine.

  • Any questions be replied by email, video, photos within 24hr.

  • Our engineer can guide your operater to work and adjust machine by video on line.

  • Quality guarantee period: 12 months after machine put into operation.

  • If the equipment fails during the guarantee peirod, the manufacturer shall repair and replace accessories free of charge.

    (Photo shows LZ 1100 cold chamber pressure casting machine with after sale service: assembly and running test.)

    cold chamber pressure casting machine after sale service

    3.Used die casting machines

  • Used cold chamber die casting machines repairment (About used aluminum die casting machine price & cost for maintain, please contact with: cnkylt@aliyun.com )

  • Old high pressure die casting equipment improvement

    (Used Toshiba die casting machine have a complete overhaul in our factory. Photo show the injection molding structure of a used Toshiba aluminum die caster. )

    Toshiba used die casting machine maintain


    More information about Cold Chamber Die Casting Machine and Mould Service, Please email us: cnkylt@aliyun.com
