Zamak Die-cast Knobs for The Euro Buyer

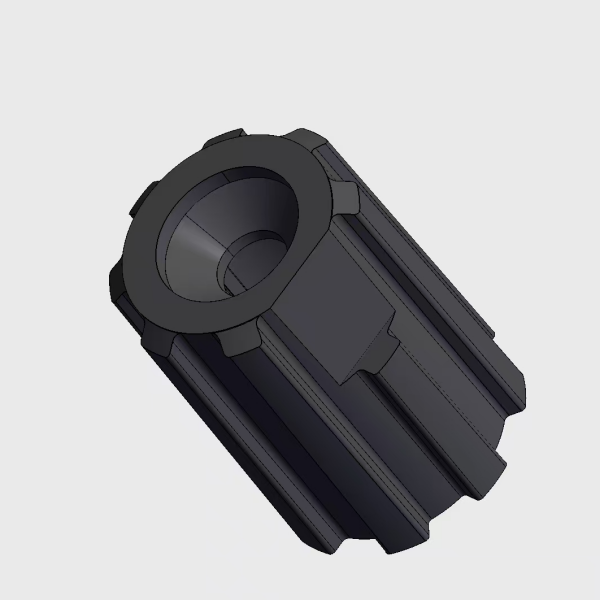

An enquiry from Euro buyer, they need an offer for the knob as photo show. The material should be in metal, not in plastic, and invest cost should be the cheapest.

Which metal material is suitable for the knob?

As the original design of this knob adopts plastic material, its requiement as follows:

- Plastic Knob Mold Design Requirements:

1. One mold 3cavities, each cavity indicated with a number

2. Hot runner system

3. Gating allowed to any surface

4. Upon ejection, the part must automatically separate from the sprue

5. Sprue remnants shall not affect the part size

6. Central ejector pin on the required area

7. Mold design should enable molding cycle within required seconds

8. Mold lifetime：500,000 ~1,000,000 shots

9. Core and cavity material: 1.2344ESR or equivalent standard mold steel (e.g., H13 or 4Cr5MoVSi)

10. Hardened cavity surface

11. Insulation protection for mold thermal management (insulation boards required)




- Plastic Knob Molding Requirements:

1. PA66+30%GF, Black color

2. Must use new material with quality certification

Die-cast Engineer's Analysis for this Project:

Which metal material is suitable for this part?

Aluminum and zinc alloys are widely used to produce various designed parts through molds. Therefore, in this project, both materials are suitable.

However, considering the material properties, aluminum die casting requires a larger mold release angle than zinc die casting. Additionally, the injection mold cost for zinc alloy is cheaper than that for aluminum. Based on these factors, our engineer believes that zinc alloy is more suitable for this knob project.

KYLT Zamak die casting service:

Zamak (Zinc) alloy die casting molds design and making

KYLT provides free instant quote when we received customers drawing or samples. If you have a Zinc alloy project or samples, we provide OEM & ODM service. Just send your details to us: cnkylt@aliyun.com

Zamak 3, Zamak 5 Die casting parts manufacturing service:

We have 88T - 150T full auto hot chamber die casting machines to provide 24hrs zinc parts die casting services. Various kind of surface treatment is allowed.

If you have any questions about Zinc/Zamak die casting or aluminum die casting, please feel free to contact us at cnkylt@aliyun.com

(KYLT provides plastic injection molds design and making, plastic molding parts manufacturing service. Especially in the manufacturing of medical device precision spare parts injection molds and parts.)
